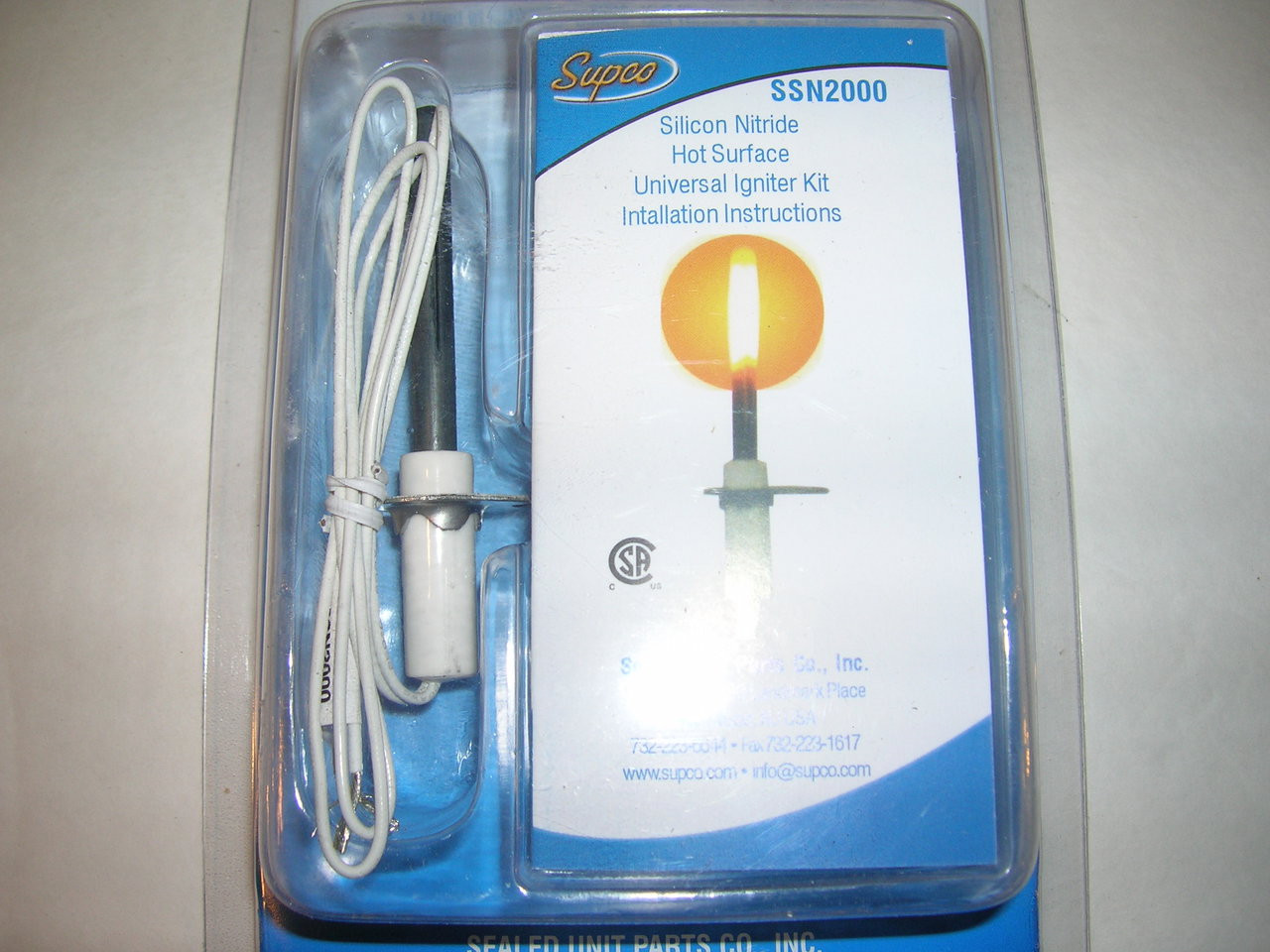

Universal Round Hot Surface Ignitor Kit  - 120V - Durable Silicon Nitride (tough as nails)- For furnaces, unit heaters, boilers and hot water heaters - Will replace over 100 hot surface ignitors. Includes ignitor, instructions, two wire nuts, tap screw and two universal metal mounting brackets. Made by Supco. (Will replace a flat or round hot surface ignitor and is a direct replacement for silicon carbide ignitors which are made from inferior materials, break easy and should not be touched). Please see second picture for list of hot surface igniters this kit replaces. Would need to cut existing wire leads and wire nut the old wires to the new wire leads with the wire nuts provided in the kit. Part No. SSN2000

SSN2000 UNIVERSAL IGNITER

• Economic design
• CSA approved
• Replaces over 100 igniters
• Life rated to 50,000 cycles
• Silicon Nitride technology for strong, durable operation and performance
• Easy installation: kits include igniter, mounting brackets, hardware, instructions & cross reference
• Universal replacements, reduces SKU’s
• Replaces hundreds of OEM & competitors igniters
• Longer igniter life (non-porous construction)
• Low energy consumption uses half the power of Silicon Carbide igniters
• Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters
• No need for power supply module
• 1 year warranty

Applications (Various types of gas fired equipment)

• Furnaces
• Boilers
• Unit Heaters
• Water Heaters
• Pool Heaters

Note: Silicon Nitride HSI igniters cannot be used in direct sense applications
Specifications
Operating Voltage 120 VAC (+/-10-15%) Time to 2102°F (1150°C) <17 seconds @ 120 VAC Steady Temperature 2156°F-2426°F (1180°C-1330°C) @ 120 VAC Cold Resistance 15-30 Ohms @ 77°F (25°C) Steady Current 1.3 Amps (+/-0.3 Amps @ 120 VAC) High Temperature Wire Leads 20 AWG UL10362 482F° Life Cycles >50,000

SSN2000 Cross References
