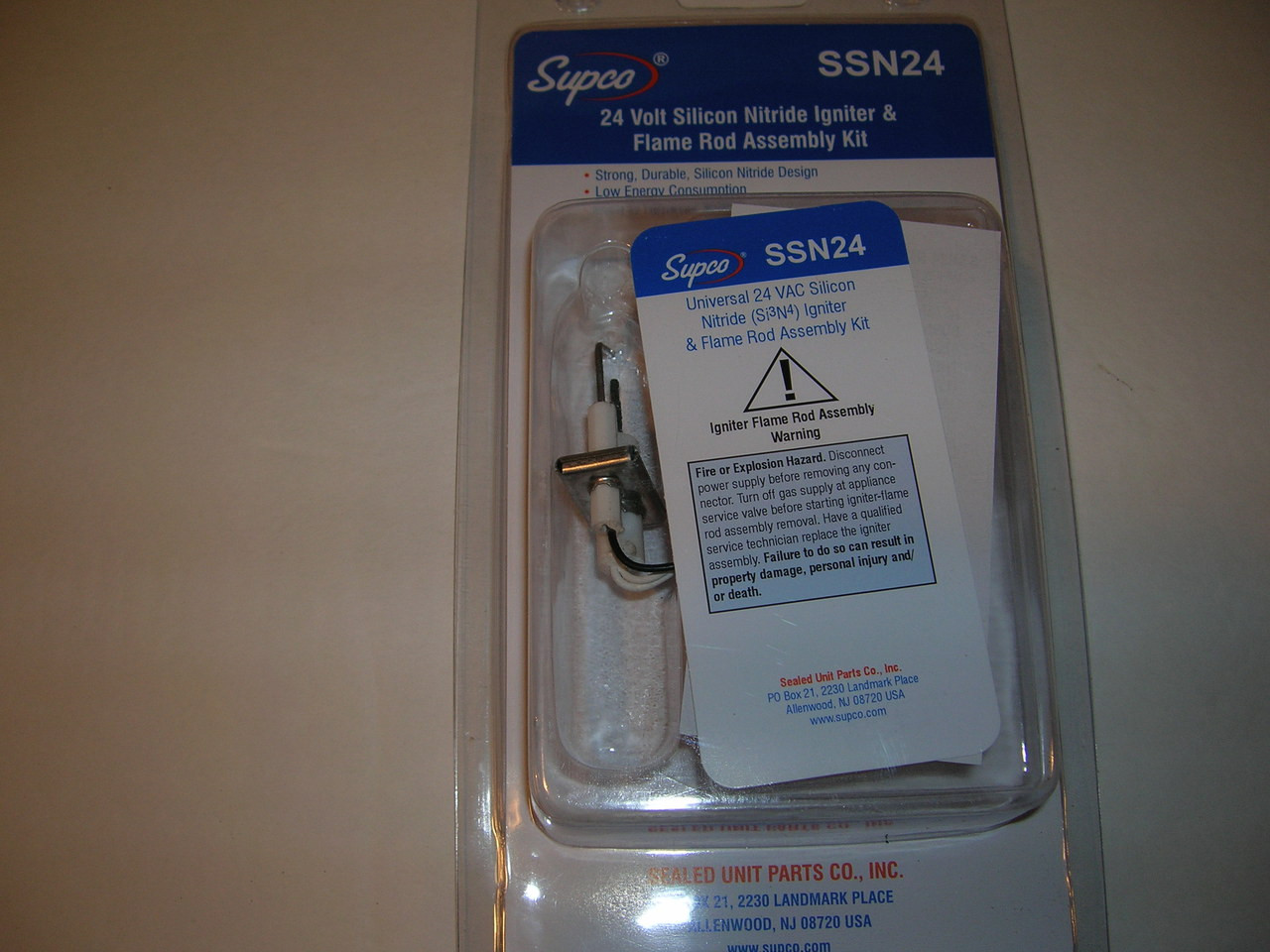

Universal Hot Surface Igniter & Flame Rod Assembly - Supco - Silicon Nitride - 24V- Smart Valve Systems-SSN24

  • Image 1
  • Image 2
  • Image 3
RRP:
$30.00
Your Price:
$21.00 (You save $9.00)


Product Description



Universal 24V Silicon Nitride Flame Rod and Ignitor Assembly. A direct replacement for all 24V hot surface ignitor Smart Valve Systems. Tough as nails.
Designed to replace many types of furnace, boiler or water heater igniters. A universal replacement silicon nitride igniter - a durable new technology with low energy consumption. Made by Supco. Part no. SSN24


  Silicon Nitride Ignitor and Flame Rod Assembly Kit (Smart Valve)- - 24V - Durable Silicon Nitride - For furnaces, unit heaters, fireplaces, spas, pool heaters, boilers and hot water heaters - Will replace Honeywell smart valves including 1st and 2nd generation. Includes ignitor, instructions, direct plug-in assembly (no need to for wire nuts) and metal mounting bracket. Made by Supco.



Used in Honeywell Smart Valves™

Replaces Flame Rod Assemblies

SV9500 1009524
SV9500M2603 1149856
SV9500M2674 42640001
SV9500M2682 Q3400A
SV9500M2528 Q3400A1016
SV9600 Q3400A1024
SV9600H Q3400A1040
SV9401 Q3450
SV9402 Q3480
SV9403 Q3620
SV9501 Mars
SV9502 65012
SV9503 Igniters Direct
SV9601 AFN643
SV9602 \







Features/Benefits

  • Includes igniter and flame rod
  • CSA approved
  • Backward compatible with all 24v Honeywell 1st and 2nd generation Smart Valves
  • Specifically used with the Honeywell Smart Valve™
  • Silicon Nitride technology for strong, durable operation and performance
  • Easy installation: kits include igniter, mounting clip, Ni Chrome flame rod, instructions & cross reference
  • Longer igniter life (non-porous construction)
  • Low energy consumption uses half the power of Silicon Carbide igniters
  • Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters
  • No need for power supply module

Applications (Various types of gas fired equipment)

  • Furnaces
  • Boilers
  • Unit Heaters
  • Water Heaters
  • Fireplaces
  • Pool Heaters
  • Spas that utilize the Honeywell Smart Valve™

Note: Silicon Nitride HSI igniters cannot be used in direct sense applications

Specifications

Operating Voltage 24 VAC + / - 10 – 15 %
Time To Reach 1800 F (982 C) 2.5 to 3 Seconds @ 24 VAC
Cold Resistance 4 – 6 Ohms @ 75 F (24°C)
Steady Current 0.98 – 1.4 Amps @ 24 VAC +/-1.0
Life Cycles >200,000
















    - temperature rating 250ºC
